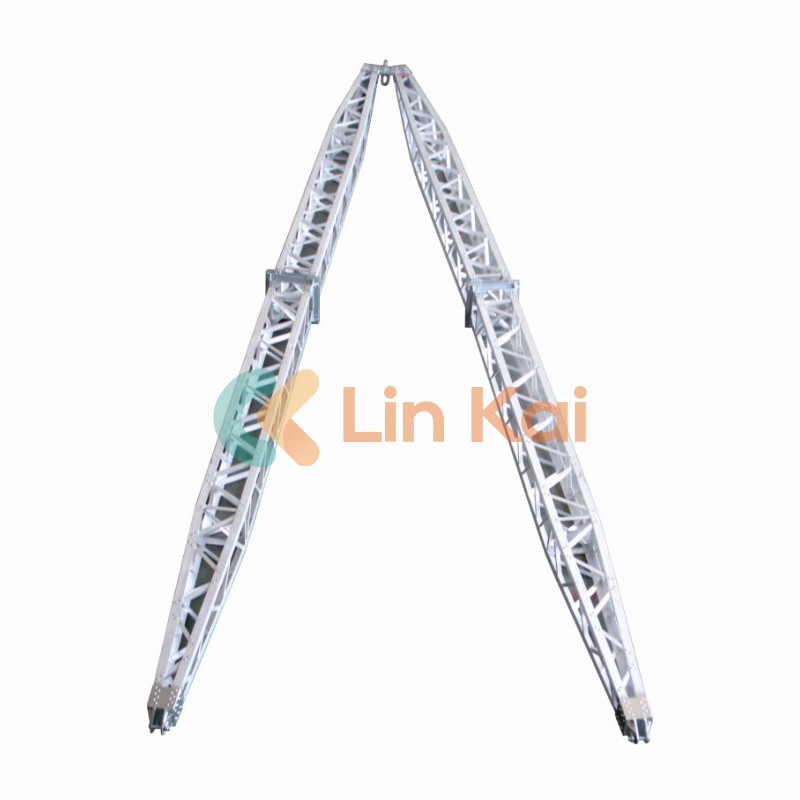

An A-Shape lattice gin pole is a temporary, engineered lifting frame used to raise, position and install poles, towers, and associated equipment during transmission-line, telecom and utility structure erection. Unlike single-tube or tubular gin poles, the A-shape lattice design uses an open, triangulated frame that combines high strength, low weight and torsional stiffness. This configuration makes it particularly well suited to lifting and up-ending whole tower sections, antenna assemblies, crossarms and similar components where controlled, guided lifting and a compact on-site footprint are required. Manufacturers commonly offer A-shape lattice gin poles in aluminum-alloy and high-tensile steel variants to balance portability, strength and corrosion resistance.

In practice the A-shape lattice gin pole is anchored at or near the structure base and connected to the section that must be erected; winches, snatch blocks and controlled rigging are then used to lift and rotate the section into place. Because the gin pole acts as a controlled lever arm and jack-point, it reduces the need for large mobile cranes in remote or constrained sites and is therefore a common solution for transmission, distribution and remote telecom tower erection. The technique is widely documented in field procedures and SOPs for line construction and tower work.

How it works (design, key parameters, and what to specify when you buy)

How does an A-shape lattice gin pole translate a small winch pull into a safe, predictable lift? At its core the gin pole converts tensile winch force into a moment about the pivot point at the base connection. The A-shape lattice geometry keeps material thin and light while using triangulated members to resist bending and torsion, distributing loads through multiple legs and bracing nodes rather than one single tube. The top/head assembly is engineered to accept different attachments (fixed head, upending head, dual-use head) and rigging blocks, allowing the gin pole to be matched to the lift profile of the tower section.

Below is a concise technical parameters table that procurement teams and site engineers commonly use to compare A-shape lattice gin pole models. These are representative fields and typical ranges — exact values vary by manufacturer and model, so always request model-specific certificates, test reports and load charts.

What should you insist on in the factory data and delivery documents? Always request: certified material test reports (Tensile, yield), dimensional drawings, a manufacturer load chart (including lifting capacity at different angles), welding/rivet records if applicable, test certificates for winches/snatch blocks supplied, and a written inspection and maintenance manual. These documents bridge the gap between a generic spec and the actual safe working capability of the gin pole on your site.

How to match a gin pole to your site requirements — a short checklist embedded in the technical workflow: determine the erected section weight and center-of-gravity, define available anchor points and base geometry, calculate the required moment (winch pull × lever arm) and select a gin pole with published capacity at the working angle you will use. When tower heights or wind/ice loads push the envelope, upgrade to higher-capacity models or select steel-reinforced series designed for heavy duty. Manufacturer load charts and the relevant gin pole standards should be used to validate your selection.

Why choose an A-shape lattice gin pole

Why do experienced contractors choose the A-shape lattice gin pole over alternatives? The reasons fall into operational, logistical and safety categories.

First, operational efficiency: the lattice A-shape yields an excellent strength-to-weight ratio. Compared with single tubular gin poles of comparable lifting torque, lattice sections are lighter to transport and easier to assemble, reducing man-hours during mobilization. The triangulated members resist torsional buckling when the pole works at off-vertical angles during an upending sequence, which means a steadier, more controllable lift.

Second, site adaptability: A-shape lattice gin poles often come in modular sections that are pinned or bolted together. This modularity lets crews tailor the assembled height to site constraints, lowering the need for an oversized crane or a second crane. In many rural or mountainous transmission projects, that logistical simplification translates into major cost and schedule savings.

Third, safety and regulatory alignment: design and use of gin poles are addressed in industry standards and accepted procedures (for example, TIA/ANSI gin pole guidance and IEEE documents that describe limits and testing protocols for gin poles used in communications and transmission work). Field crews should follow a written SOP that covers rigging configuration, anchor design, tag lines, exclusion zones, pre-lift inspection, and emergency lowering procedures. Several jurisdictions embed these standards into local regulations or employer rules for tower work. Using equipment built to recognized standards and operated to documented SOPs reduces risk and provides legal and insurance clarity in the event of an incident.

Safety-critical considerations (what to control on every lift): do not exceed rated capacities at the given working angle; ensure pins and fasteners are rated and secured; verify that winch brakes and snatch blocks are in certified condition; monitor wind speed and suspend lifts when gusts threaten stability; and plan for a controlled lowering path in case the primary winch fails. Many supplier manuals and site SOPs also require load-testing and visual inspection records before first use on a site. These practical controls follow the same principles found in published SOPs for gin pole operations.

How to reduce human and equipment risk: assign a single competent lift supervisor with authority over the lift, communicate the lift plan and signals to all personnel, place exclusion zones, and keep non-essential workers well clear. Pre-lift checklists should include verification of manufacturer's assembly torque/pin torques, rigging angles, shackle ratings, and anchor stability. Where available, use torque-monitored winches or load cells to actively record lift force and avoid inadvertent overloads. These controls are straightforward but make the difference between routine lifts and incidents that cause downtime and cost overruns.

Node 4 — Two common questions (Q&A) and close with brand & contact

Q: How do I know which head type (upending vs fixed) I need for my gin pole order?
A: Choose an upending head if the operation requires rotating a complete tower section from horizontal to vertical (the upending head allows controlled pivoting and usually integrates a swivel or drop-pin system), choose a fixed head if you will only lift vertically or use the gin pole as a static lifting point; if site work combines both tasks, specify a dual-use head so the same gin pole supports both vertical lifts and upending operations without field retrofitting — always verify the manufacturer’s load chart for the selected head configuration.

Q: What routine inspections and maintenance will keep a lattice gin pole safe for years?
A: Inspect before each use (check rivets/bolts, look for hairline cracks or corrosion in members, verify pin engagement and safety clips, test winch brakes and rope condition), perform a documented annual structural inspection (including nondestructive testing on high-stress welds or pin holes if required by your QA program), replace shackles and wire rope at the signs of wear per manufacturer guidance, and follow the supplied maintenance manual and load-test schedule so that every delivered unit retains its certified lifting capability. Keep inspection records to demonstrate due diligence to clients and safety authorities.

In conclusion, the A-shape lattice gin pole is a proven, efficient tool for erecting transmission poles, telecom towers and similar structures where mobility, control and a favorable strength-to-weight ratio are priorities. Its modularity, head-type options and documented load charts make it straightforward to match a model to your site needs; its design and operational practice align with established standards and SOPs used across the industry. For teams evaluating options, weigh total lifecycle cost (procurement, transport, crew hours for assembly, and maintenance) rather than purchase price alone — that is where A-shape lattice systems commonly show advantage. For professional procurement and technical support on A-shape lattice gin poles, consider Lingkai’s engineered product lines; their models are available with full technical documentation, load charts and after-sales support. Contact us for model sheets, factory certificates and a site-specific selection consultation — our team will respond with detailed proposals and delivery options.
