In today’s fast-growing power transmission industry, efficiency and safety are crucial when installing overhead power lines. Among the many tools used during the construction process, conductor stringing blocks play a pivotal role. These precision-engineered devices are designed to guide conductors smoothly during stringing, reduce friction, prevent wire damage, and ensure the project is completed safely and efficiently.

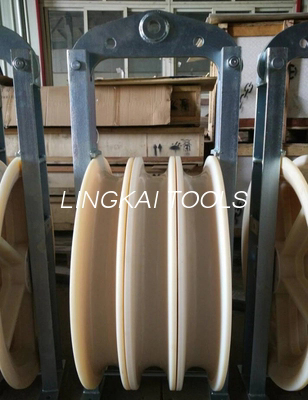

Conductor stringing blocks are specialized pulley systems used in overhead power line construction to guide electrical conductors during the stringing process. When installing high-voltage transmission lines, conductors need to be pulled over long distances, often across challenging terrains such as valleys, rivers, and mountains. Without proper guiding equipment, the conductors could suffer from scratches, abrasions, or kinks, which would compromise their performance and lifespan.
Smooth Conductor Guidance – Ensures wires glide over the pulley without damage.
Reduced Friction – High-quality bearings and grooved sheaves minimize friction during pulling.
Enhanced Safety – Prevents snapping or tangling of conductors, reducing risks for workers.
High Load Capacity – Designed to handle heavy conductors under extreme tension.
Versatility – Suitable for single, double, triple, or quad-bundle conductors depending on project requirements.
In modern power line construction, using advanced stringing blocks ensures faster installation times, lower maintenance costs, and improved operational safety.
Friction is one of the biggest challenges during conductor stringing. Traditional pulley systems can cause surface scratches or insulation damage, leading to premature failures. Conductor stringing blocks are engineered with deep-groove aluminum or nylon sheaves, lined with neoprene or rubber inserts to protect the conductor surface.
Benefit:
Prevents costly replacements due to damaged conductors.
Extends conductor service life.
Reduces downtime during installation.
Modern power grids require increasingly high-capacity conductors, which are often thicker, heavier, and used in bundled configurations. Advanced stringing blocks are built with high tensile strength alloys and reinforced side plates to accommodate these loads.
Applications include:
500kV and 750kV ultra-high voltage lines
Double-circuit transmission towers
Long-span river crossings
Power line construction often takes place in challenging environments where safety and efficiency are critical. Conductor stringing blocks, especially those equipped with self-lubricating bearings and anti-fall locking mechanisms, allow conductors to pass smoothly and securely.
Advantages:
Faster Deployment – Reduced resistance ensures quicker stringing.
Lower Workforce Risks – Built-in safety locks prevent conductor dislodgment.
Fewer Equipment Failures – High-quality materials withstand extreme temperatures and stress.
No two transmission projects are the same. Depending on the number of conductors, terrain, and voltage level, different types of stringing blocks are required. From single-sheave blocks for low-voltage rural lines to quad-bundle blocks for high-voltage cross-country installations, modern products cater to diverse needs.
Below is a detailed overview of the common specifications for high-performance conductor stringing blocks:
| Model | Sheave Diameter | Rated Load (kN) | Conductor Size Range | Sheave Material | Bearing Type | Weight (kg) |
|---|---|---|---|---|---|---|
| LK-SB250 | 250 mm | 20 kN | Up to 300 mm² | Aluminum Alloy | Ball Bearing | 5.8 |
| LK-SB400 | 400 mm | 40 kN | Up to 500 mm² | Nylon + Neoprene | Self-Lubricating Bearing | 9.2 |
| LK-SB508 | 508 mm | 50 kN | Up to 720 mm² | High-Strength Aluminum | Sealed Roller Bearing | 12.6 |
| LK-SB660 | 660 mm | 80 kN | Up to 1000 mm² | Reinforced Aluminum | Heavy-Duty Roller Bearing | 18.4 |
| LK-SB916 | 916 mm | 120 kN | Up to 1500 mm² | Composite Nylon | Double-Sealed Bearing | 28.7 |
Highlights:
Sheave Diameter Options – From 250 mm to 916 mm to suit various conductor sizes.
High Load Ratings – Up to 120 kN for ultra-high voltage projects.
Premium Materials – Lightweight yet durable alloys reduce wear and tear.
Low Maintenance Design – Sealed bearings extend service life in harsh environments.
A: The choice depends on several factors: conductor diameter, line voltage, pulling tension, and terrain. For smaller distribution lines, a single-sheave block may suffice, while high-voltage transmission lines often require quad or bundle sheave blocks. Always ensure the rated load exceeds the maximum pulling force expected during installation.
A: Yes. High-quality stringing blocks are compatible with a wide range of conductors, including ACSR (Aluminum Conductor Steel-Reinforced), AAAC (All Aluminum Alloy Conductor), and ACCC (Aluminum Conductor Composite Core). The protective lining of the sheaves ensures minimal friction and prevents surface damage, regardless of the conductor material.
When it comes to power line construction, precision and durability matter. Lingkai has earned a strong reputation for delivering high-quality conductor stringing blocks engineered for demanding environments. Our products combine cutting-edge design, premium materials, and strict quality control, ensuring outstanding performance in even the toughest conditions.
Whether you’re working on rural electrification, high-voltage cross-country transmission, or complex river-crossing projects, Lingkai offers tailored solutions to meet your exact needs.
For more details, technical support, or bulk orders, contact us today and speak with our expert team.
