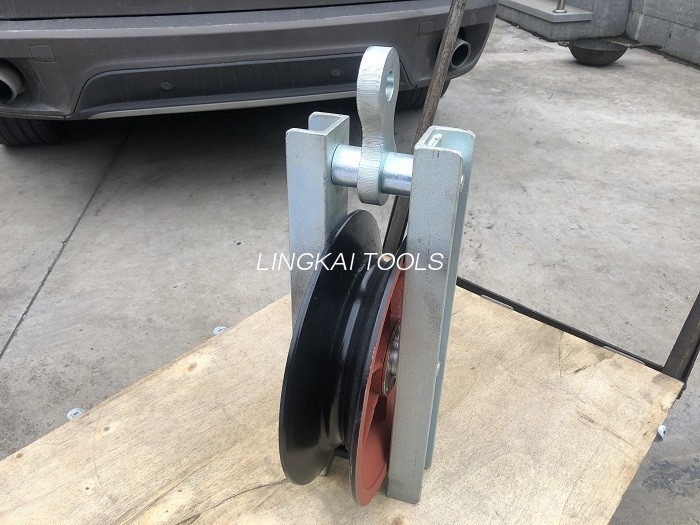

Wire Rope Cable String Pulley Block For Conductor High Speed Turning Block

Wire Rope Cable String Pulley Block For Conductor High Speed Turning Block

High quality Wire Rope Cable String Pulley Block For Conductor High Speed Turning Block from China, China's leading Conductor Wire Rope Pulley product, with strict quality control Wire Rope Universal Stringing Block factories, producing high quality Turning Cable Pulley Block products.
Send Inquiry
Product Description
Model:
THZ2-16
Rated Load:
160 KN
Sheave Diameter:
660mm
Material:
Steel Sheave

WIRE ROPE CABLE STRING PULLEY BLOCK FOR CONDUCTOR HIGH SPEED TURNING BLOCK

Apply to steel wire rope traction and turning. It can pass through steel wire rope connector;

The maximum allowable speed of hauling rope is 80m/min.

TECHNICAL DATA

Item number Model

Rated Load

(KN)

 Sheave Diameter(mm)

Sheave

width

(mm)

Weight

(kg)

 Remark
12141 THZ1-5 50 Φ308 75 22 Steel Sheave
12141A THZ1-8 80 Φ308 110 30
12142 THZ1-16 160 Φ600 110 115
12143 THZ1-30 300 Φ916 110/125 200
12141B THZ2-10 100 Φ308 110 52
12142A THZ2-16 160 Φ660 110 68































Wire Rope Cable String Pulley Block For Conductor High Speed Turning Block 1

Hot Tags: Conductor Wire Rope Pulley, Wire Rope Universal Stringing Block, Turning Cable Pulley Block, Overhead Line Stringing Tools
