High Speed Turning Blocks

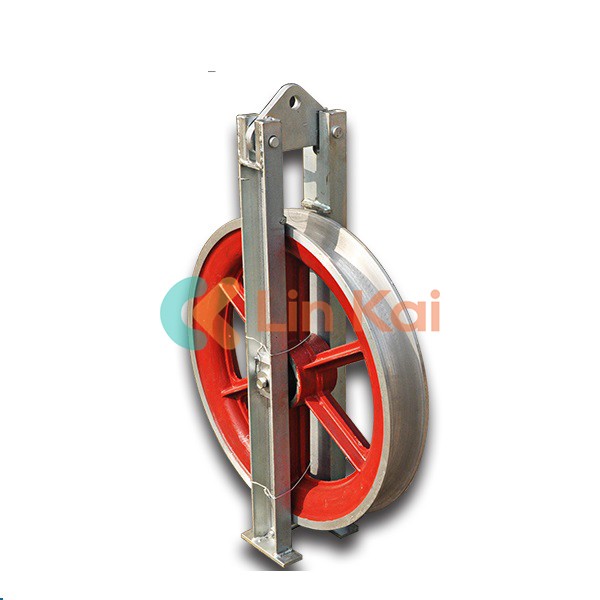

You can buy High Speed Turning Blocks which are made of steel wheels made in China by the Ningbo Lingkai Transmission factory. To get a cheap High Speed Turning Blocks quotation, please contact us anytime, 24 hours a day. These Blocks are used to turn wire cable in tensioning erecting wires and can pass through cable connectors.

High Speed Turning Blocks

You can buy discount high speed turning Blocks, which are made of steel wheels from Ningbo Lingkai, function to turn wire cable in tensioning erecting wires. The cable connector can pass through it. The maximum allowable speed for hauling rope is 80 m/min.


The wire rope cable stringing pulley block, which is made in China by Ningbo Lingkai, is for the conductor High Speed Turning Blocks sheet below:


Item number

Model

Rated Load

(KN)

Sheave Diameter(mm)

Sheave

width

(mm)

Weight

(kg)

Remark

12141

THZ1-5

50

Φ308

75

22

Steel Sheave

12141A

THZ1-8

80

Φ308

110

30

12142

THZ1-16

160

Φ600

110

115

12143

THZ1-30

300

Φ916

110/125

200

12141B

THZ2-10

100

Φ308

110

52

12142A

THZ2-16

160

Φ660

110

68


Except for the best-selling high speed turning blocks. Our conductor-stinging pulleys are in bulk stock.

Our main product, conductor stringing pulleys, is made up of a special galvanized steel frame and three single pulleys. The single pulleys can be used separately. The wheels are made of aluminum alloy mounted on ball bearings. The lateral wheel has a groove lined by a neoprene ring. The central wheel has a groove made up of wear-proof interchangeable negatron sectors. The pulleys are supplied with a fixed connection.


You can purchase discounted high-speed turning blocks made of steel wheels from Ningbo Lingkai. These High Speed Turning Blocks are designed to turn wire cables during tensioning and erecting operations, allowing cable connectors to pass through them. The maximum allowable speed for hauling rope is 80 m/min.Ningbo Lingkai manufactures High Speed Turning Blocks in China for use with high-speed turning blocks.In addition to our best-selling High Speed Turning Blocks, we keep a large stock of conductor stringing pulleys.Our main product, the High Speed Turning Blocks, features a special galvanized steel frame and three single pulleys, which can also be used individually. The High Speed Turning Blocks' wheels are made of aluminum alloy and mounted on ball bearings. The lateral wheel includes a groove lined with a neoprene ring, while the central wheel has a groove made of wear-proof, interchangeable negatron sectors. These pulleys are supplied with a fixed connection.
