Ningbo Lingkai Machinery is Manufacturer and supplier of high quality High-Pressure hydraulic pump station with HONDA gas engine .Products are mainly exported to America, German, Japan, Korea, Poland and Italy etc. Welcome to contact with us for cooperation

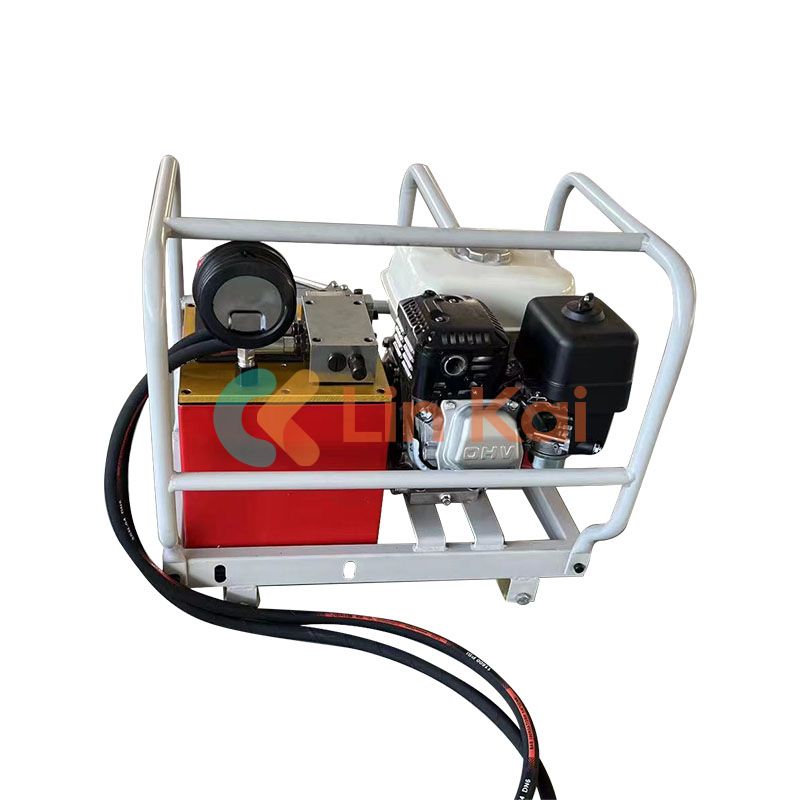

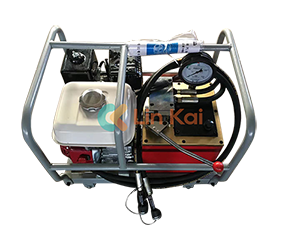

The High-Pressure hydraulic pump station with HONDA gas engine plays an essential role as a power source for hydraulic compressors or other related equipment. This High-Pressure hydraulic pump station with HONDA gas engine is equipped with a HONDA GX160 gasoline motor that delivers reliable and efficient performance. Additionally, the standard hydraulic hose that comes with the pump station has a length of 3 meters, and users have an option of purchasing a longer hose if required.
The High-Pressure hydraulic pump station with HONDA gas engine is designed to provide a high-pressure output of 80 MPa, making it suitable for heavy-duty applications that require high-pressure fluid delivery. The HONDA GX160 motor is a reliable power source that is known for its durability and efficiency. The motor is also gasoline-powered, making it easy to maintain and operate.
The standard hydraulic hose that comes with the pump station is 3 meters in length. However, users can opt for a longer hose, depending on their specific needs and requirements. This feature provides users with the flexibility to use the Super High-Pressure Hydraulic Pump Station in a variety of settings and environments.
1. High-Pressure hydraulic pump station with HONDA gas engine
2. Instruction Manual and certifications.
3. Wooden case
4. Estimated Delivery Time: 3-5 business days
High-Pressure hydraulic pump station with HONDA gas engine (Model: YBG-94WQ)
Application: It should be noted that the pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine. A normal hydraulic hose is three meters long. Extended Hose is not required.
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Max Pressure (Mpa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
94 |
11.02-2.05 |
5.0 |
55 |
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
